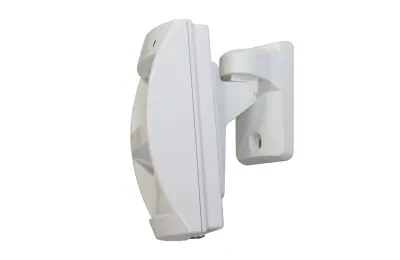

Outdoor detector

Soutdoor/L

Digital dual PIR

Soutdoor/L is a dual PIR detector with an analysis system that detects the two main changes caused by movement: speed and intensity. By correlating these two pieces of information simultaneously, Soutdoor/L can distinguish repetitive movements from intrusions and significantly reduce the rate of false alarms. Even with large temperature variations, the fully digital compensation system ensures very high performance. It covers 12 metres with a 90° angle. The ability to use different lens types makes Soutdoor/L particularly suitable for any installation (at heights of 1 to 3 m with horizontal volumetric curtain lenses, or wall-mounted with a vertical curtain effect to protect doors and windows).

Available colour: white - Dimensions: H 185, W 85, D 66 mm

Operating features:

- Dual PIR in AND mode with 4" timer

- Range from 6 m to 12 m

- Walk test LED

- Double pulse function

- Interchangeable lenses

- Optional junction block

- Solid-state relay alarm contact (NO, NC)

- Tamper contact (NO, NC)

Technical specifications:

- Power supply: 10.5 V to 15 V

- Standby: 14 uA

- Alarm consumption: 25 mA

- IP65 protection rating
